DDAR Performance Data

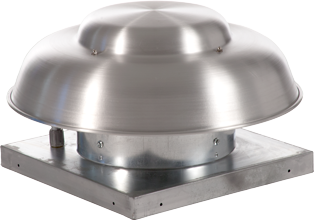

DDAR Sizes - Axial Downblast Direct Drive Fans

Select one of the models listed below to see its performance data.

DDAR
DDAR10
Curve
DDAR10 BDD
Curve
DDAR10-F
Curve
DDAR12
Curve
DDAR12 BDD
Curve
DDAR12-F
Curve
DDAR14
Curve
DDAR14 BDD
Curve
DDAR14-F
Curve
DDAR18
Curve
DDAR18 BDD
Curve
DDAR18-F
Curve

Performance Table

Model Motor
HP		 RPM TS Static Pressure in Inches W.G.
0.000 0.125 0.250 0.375 0.500 0.625 0.750 0.875 1.000 1.125
DDAR10 1/30 1500 3927 524 333 226 120
DDAR12 1/10 1500 4712 830 710 620 522 436 357 270 175 78
DDAR14 1/6 1100 4032 1008 570 372 197 10
DDAR18 1/3 1100 5184 2400 2034 1628 1491 1293 1084 881 662 433 176

Performance shown is certified for installation type A: Free inlet, Free outlet. Performance ratings do not include the effects of appurtenances in the airstream. Power rating (BHP) does not include transmission losses.

AMCA Certification FloAire certifies that Models DDAR10 through DDAR18 are licensed to bear the AMCA seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and complies with the requirements of the AMCA Certified Ratings Program. Tested to AMCA Standards 210. Meets California Energy Commission (CEC) Title 20 Regulations.

Catalog #110F
November 2024
