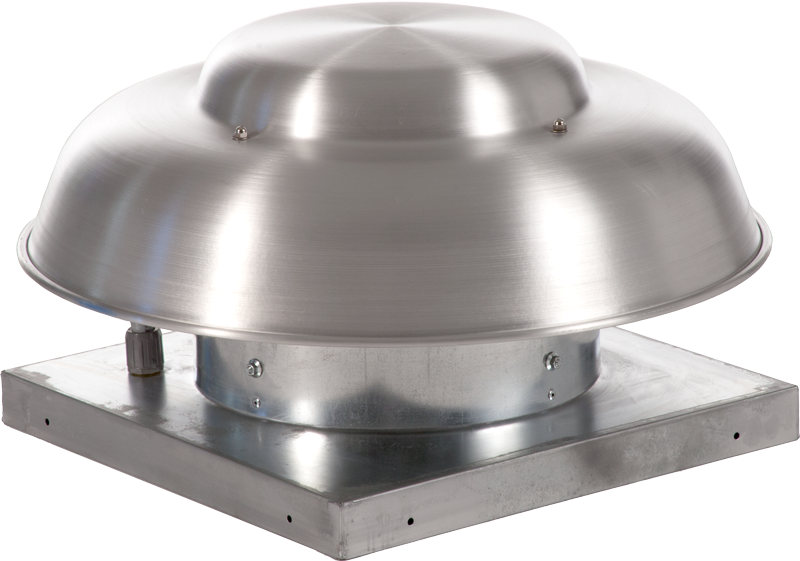

Direct Drive Downblast Fan(DDAR)

Axial Direct Drive Fans are the perfect low cost exhaust choice in the areas that have little or no ductwork, and thus, relatively low to moderate resistance.

  • Air Volume: 1 – 2,400 cfm
  • Maximum SP: 1.25" wg. at standard air density

  • Spun aluminum housing for rust-free weather resistant durability
  • Propellers constructed with die formed blades riveted to a steel hub
  • Can be roof or wall mounted
  • Standard bird screen
  • Wire conduit to provide a clear channel for electrical connections
  • Emergency Disconnect Switch

  • Gravity Damper
  • Motorized Damper
  • Wall Mount Sleave
  • Roof Curb

ETL Listed AMCA Air Performance Certified

FloAire certifies that Models DDAR10 through DDAR18 are licensed to bear the AMCA seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and complies with the requirements of the AMCA Certified Ratings Program. Tested to AMCA Standards 210. Meets California Energy Commission (CEC) Title 20 Regulations.

Models DDAR10 thru DDAR18 are ETL Listed under file number 102628244PRT-001 and comply with UL705 (electrical) Standards and CSA Std C22.2, No 113.

Catalog #110F
November 2024

  • DDAR10 Axial Radial Direct Drive Exhaust Fan with 10" wheel - Hub Up - Rotation CCW.
  • DDAR10 BDD Axial Radial Direct Drive Exhaust Fan with 10" wheel & a gravity back draft damper - Hub Up - Rotation CCW.
  • DDAR10-F Axial Radial Direct Drive Exhaust Fan with 10" wheel - Hub Up - Rotation CCW - Flat Base.
  • DDAR12 Axial Radial Direct Drive Exhaust Fan with 12" wheel - Hub Up - Rotation CCW.
  • DDAR12 BDD Axial Radial Direct Drive Exhaust Fan with 12" wheel & a gravity back draft damper - Hub Up - Rotation CCW.
  • DDAR12-F Axial Radial Direct Drive Exhaust Fan with 12" wheel - Hub Up - Rotation CCW - Flat Base.
  • DDAR14 Axial Radial Direct Drive Exhaust Fan with 14" wheel - Hub Down - Rotation CCW.
  • DDAR14 BDD Axial Radial Direct Drive Exhaust Fan with 14" wheel and a gravity back draft damper - Hub Down - Rotation CCW.
  • DDAR14-F Axial Radial Direct Drive Exhaust Fan with 14" wheel - Hub Down - Rotation CCW - Flat Base.
  • DDAR18 Axial Radial Direct Drive Exhaust Fan with 18" wheel - Hub Up - Rotation CCW.
  • DDAR18 BDD Axial Radial Direct Drive Exhaust Fan with 18" wheel and a gravity back draft damper - Hub Up - Rotation CCW.
  • DDAR18-F Axial Radial Direct Drive Exhaust Fan with 18" wheel - Hub Up - Rotation CCW - Flat Base.
  • DDAR20 Axial Radial Direct Drive Exhaust Fan with 20" wheel
