- Automatically modulates fans based on cooking load. Modulation allows for energy savings compared to fans running on high speed during cooking operation.
- Max Airflow Override and real-time energy savings displayed
- Preparation Time Function: Exhaust fans will automatically turn on at low CFM and lock-out dedicated make-up air. Designed for morning operation when light food preparation is being performed.
- Cool Down Function: At the end of cooking operations, the exhaust fans will automatically turn down to a low CFM and lock-out dedicated make-up air. Designed for equipment cool-down period at the end of the night.

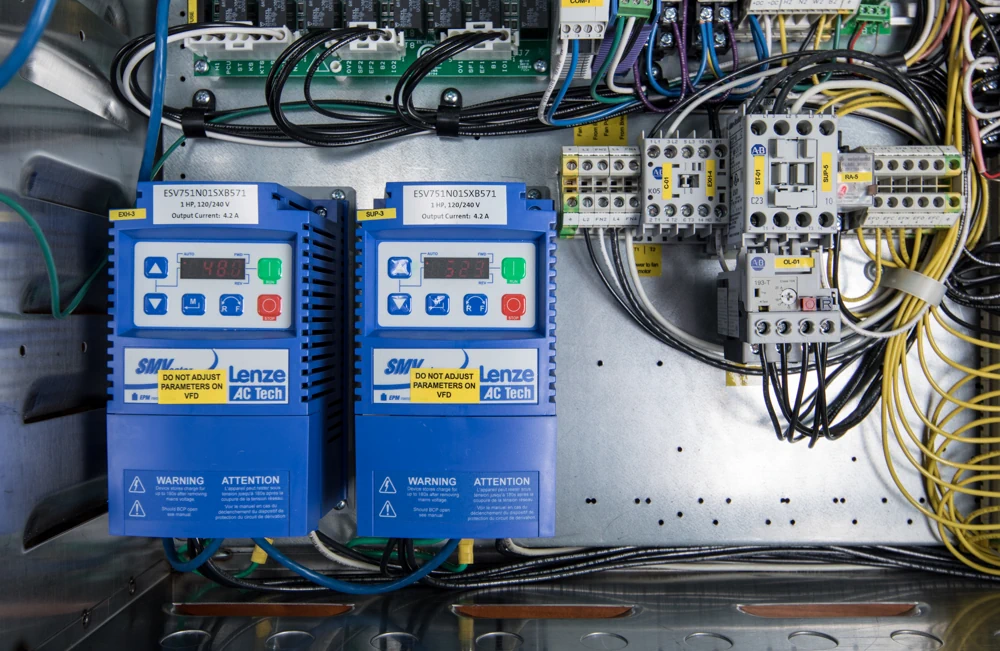

- Wiring between VFDs and Control Board is simplified with the use of CAT-5
Smart Controls with optional Demand Control Ventilation
Automatically modulates fans based on cooking load. Modulation allows for energy savings compared to fans running on high speed during cooking operation.
Demand Control Ventilation
Advanced Digital Logic Controller
& LCD Based Option Configuration
- Allows for system flexibility and easy adjustment
-
Need to update a feature to meet local code?
Simply activate the option via the LCD screen. No field rewiring needed. - Functionality to meet National and Local Codes built-in by default
- Allows for system flexibility and easy adjustment

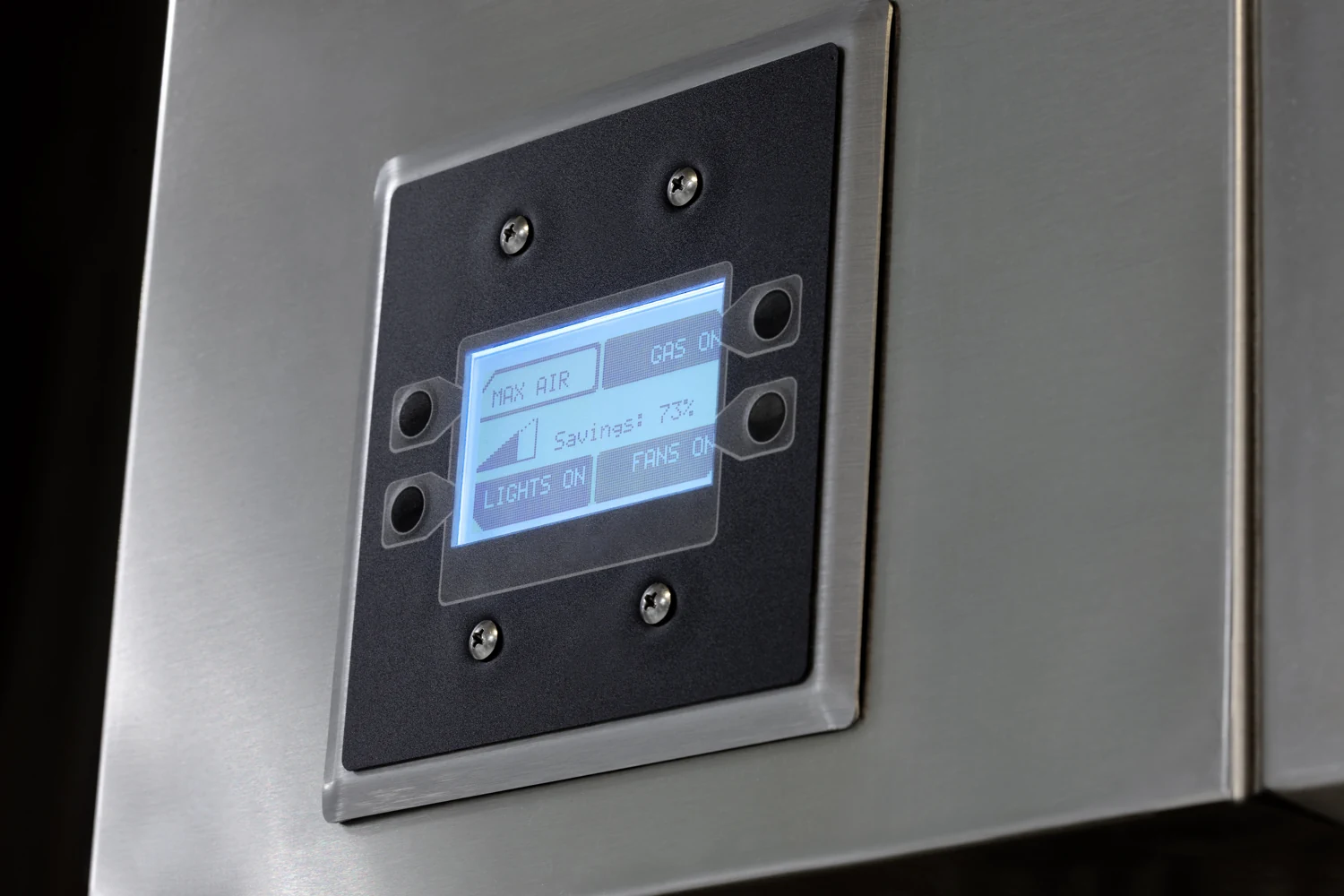

LCD Based User Interface
- Real-time status of fans, lights and electric gas valve
- Provides audible alerts of failures or issues
- Alarm notifications displayed in English text to improve installation quality
- Robust screen to withstand commercial kitchen environment
- Display of overload status for fan zone. If the overload trips, an alert notifies the operator immediately
Automatic Fan Activation
- How it works: If the exhaust duct sensor detects a temperature rise of a fixed differential over kitchen space temperature, the fans will automatically turn on
- System can run in the automatic mode to save energy, respond to cooking appliances and meet code
- Improved response time versus traditional fixed temperature activation set point systems
Integrated Features
- Integrated Electronic Gas Valve Reset Relay
- Built-in reset relay included for all packages
- External reset button and relay is no longer needed and installation is simplified
Plug & Play Switch Wiring
- Field wired switches are now wired using a single CAT-5 cable
- Low voltage wiring reduces installation cost
- Reduced high voltage wiring between devices
Demand Ventilation with Digital Interface
- Operation & Installation Manual
- Hood Installation
- Duct Temperature Sensor Install Diagram (PDF)
- Duct Temperature Sensor Install Diagram (ACAD Drawing)
- Duct Sensor (Thermistor) Manufacturer Specification Sheet
- Room Sensor (Thermistor) Manufacturer Specification Sheet
- Written Specification
- SMV 571 VFD Manufacturer Operating Instructions
- Direct Digital Controls (DCV)
The Electrical Control Panel Model has been certified by ITS. This certification mark indicates that the product has been tested to and has met the minimum requirements of a widely recognized (consensus) U.S. and Canadian products safety standard, that the manufacturing site has been audited, and that the applicant has agreed to a program of periodic factory follow-up inspections to verify continued performance.
Models Electrical Control Panel are ETL Listed under file number 101754591COL-001 and complies with UL508A Standards and CAN/CSA C22.2, No. 14-05 Standards.
ECPM03 Circuit Board is ETL Listed under file number 100901773BOX-001 and complies with UL 61010-1 Standard and CAN/CSA C22.2, No. 61010-1 Standards.
