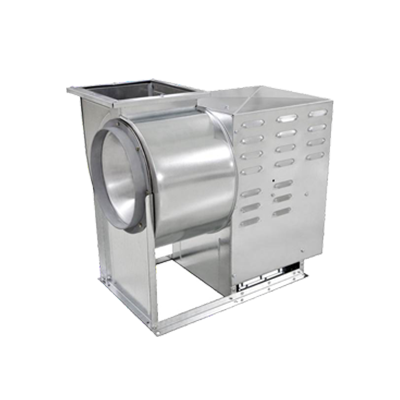

General and Restaurant Duty Utility Sets(FABI-RM)
For general ventilation and ventilation of grease laden contaminants. For high temperature and heavy grease applications.
- Air Volume: 250 – 28,000 cfm
- Maximum SP: 6" wg. at standard air density
- Use with General Ventilation (UL705) and ULC-S645
- Vented Motor Cover and Continuously Sealed Housing for added weather protection
- Scroll and Motor Compartment Connected for added Structure
- Easily Accessible Clean Out Door and Motor Access from 3 Sides
- Standard 2" Grease Drain
- Standard Emergency Disconnect Switch
- Standard Heat Slinger and Heavy Duty Pillow Block Bearings for Belt Drive option
- Standard Shaft Seal for Belt Drive option
- Standard Pivot Plates for easy Belt Adjustment
- Double Groove Pulleys standard for 2 HP and Above Motors
- Discharge Outlet Flanges Available on All Sizes
- Temperature Ratings - Aluminum Wheel, 350 degrees F
- Belt Drive
- Belt Drive High Pressure
- Direct Drive
- Discharge Extension
- Discharge Screens
- Discharge Shutter (UL705 Only)
- Discharge Configurations: Vertical, Horizontal Left or Horizontal Right
- Vibration Isolators
- Extended Lube Lines
FloAire certifies that Model FABI11DD-RM through FABI20DD-RM are licensed to bear the AMCA seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and 311 and comply with the requirements of the AMCA Certified Ratings Program. Tested to AMCA Standards 210 and 300. Meets California Energy Commission (CEC) Title 20 Regulations.
Models FABI11DD-RM through FABI20DD-RM are ETL Listed under file numbers 103336443COL-001 and 102628244PRT-001 and comply with UL705 (electrical), and ULC-S645 Standards and CSA Std C22.2, No 113.
Catalog #110F
November 2024
Drawings
- Isolator Detail Drawing
- Exploded Parts Detail
- Exploded View Belt Drive Small
- Exploded View Belt Drive Large
- Exploded View Direct Drive Small
- Exploded View Direct Drive Large
- Exploded View Extension Assembly
- Exploded View Inlet Connection
- Exploded View Inlet Service Duct
- Exploded View Rain Cap Assembly
- Submittal Drawings
- FABI11DD-RM Direct Drive Exhaust Only Unit With 11.750" Utility Set Exhaust Fan w/ 2" Grease Drain. Clockwise Rotation When Looking At Inlet.
- FABI13DD-RM Direct Drive Exhaust Only Unit With 13.750" Utility Set Exhaust Fan w/ 2" Grease Drain. Clockwise Rotation When Looking At Inlet.
- FABI15DD-RMDirect Drive Exhaust Only Unit With 15.750" Utility Set Exhaust Fan w/ 2" Grease Drain. Clockwise Rotation When Looking At Inlet.
- FABI18DD-RM Direct Drive Exhaust Only Unit With 18.750" Utility Set Exhaust Fan w/ 2" Grease Drain. Clockwise Rotation When Looking At Inlet.
- FABI20DD-RM Direct Drive Exhaust Only Unit With 20.750" Utility Set Exhaust Fan w/ 2" Grease Drain. Clockwise Rotation When Looking At Inlet.
- FABI24DD-RM Direct Drive Exhaust Only Unit With 24.750" Utility Set Exhaust Fan w/ 2" Grease Drain. Clockwise Rotation When Looking At Inlet.
- FABI24DD-RM-S Direct Drive Exhaust Only Unit With 24.750" Steel Wheel. Utility Set Exhaust Fan w/ 2" Grease Drain. Clockwise Rotation When Looking At Inlet.
- FABI30DD-RM Direct Drive Exhaust Only Unit With 30.875" Utility Set Exhaust Fan w/ 2" Grease Drain. Clockwise Rotation When Looking At Inlet.
- FABI30DD-RM-S Direct Drive Exhaust Only Unit With 30.875" Steel Wheel. Utility Set Exhaust Fan w/ 2" Grease Drain. Clockwise Rotation When Looking At Inlet.
- FABI36DD-RM Direct Drive Exhaust Only Unit With 37.250" Utility Set Exhaust Fan w/ 2" Grease Drain. Clockwise Rotation When Looking At Inlet.
- FABI36DD-RM-S Direct Drive Exhaust Only Unit With 37.250" Steel Wheel. Utility Set Exhaust Fan w/ 2" Grease Drain. Clockwise Rotation When Looking At Inlet.
